AVL-Tree

AVL tree

An AVL tree is a self-balancing binary search tree where the height difference between the left and right subtree of any node is at most 1.
AVL trees guarantee $O (lo g n)$ for search, insert, and delete.
Named after its inventors Adelson-Velsky and Landis (1962).

Balance Factor

The balance factor of a node is defined as the height of its left subtree minus the height of its right subtree.
$BF (n o d e) = height (n o d e . l e f t) - height (n o d e . r i g h t)$
BF > 0: left-heavy (left subtree taller)
BF = 0: balanced (equal heights)
BF < 0: right-heavy (right subtree taller)

AVL property: $∣ BF (n o d e) ∣ \leq 1$ for every node.
If this property is violated after an insertion or deletion, rotations are performed to restore balance.

Insertion

Standard BST insertion
Update heights of ancestors bottom-up
Find the first unbalanced node (if any) on the path from the inserted node to root
Rebalance using rotation(s)/cut-and-link algorithm
After fixing the lowest unbalanced node, the tree is guaranteed to be balanced

Deletion

Perform standard BST deletion
Udpate heights of ancestors bottom-up
Find the first unbalanced node (if any) on the path from the deleted node to root
Rebalance using rotation(s)/cut-and-link algorithm
May need to rebalance parents of the unbalanced node as well, continue up to root

Rebalancing Intuition
An imbalance always involves three nodes (x, y, z) and four subtrees ( $T_{0}, T_{1}, T_{2}, T_{3}$ ). Example (“left left” case):
  z (BF = +2)
  / \
     y   T3
    / \
   x   T2
  / \
  T0 T1
The rebalancing algorithm rearranges these 7 parts into the canonical balanced form:
 b
/   \
a	 c
  / \   / \
 T0 T1 T2 T3
where (a, b, c) is the in-order sequence of (x, y, z), and the subtrees are placed in sorted order.

Rebalancing
Given three nodes: z (grandparent, unbalanced node with BF = ±2), y (taller child of z), x (taller child of y),

Let $(a, b, c)$ be the in-order sequence of nodes $x, y, z$

Let $(T_{0}, T_{1}, T_{2}, T_{3})$ be the in-order sequence of their four subtrees

Rotation algorithm:

Replace subtree rooted at $z$ with subtree rooted at $b$

Make $a$ the left child of $b$ with subtrees $T_{0}$ (left) and $T_{1}$ (right)

Make $c$ the right child of $b$ with subtrees $T_{2}$ (left) and $T_{3}$ (right)

The same algorithm works for all four possible imbalances - only the mapping to $(a, b, c)$ differs:
 Unbalanced node z with BF = +2 (left-heavy):
   - Child y has BF ≥ 0 (straight line)  → LL case: Single rotation
   - Child y has BF < 0  (zigzag)		→ LR case: Double rotation
 Unbalanced node z with BF = -2 (right-heavy):
   - Child y has BF ≤ 0 (straight line)  → RR case: Single rotation
   - Child y has BF > 0  (zigzag)		→ RL case: Double rotation
All possible imbalances | Case distinctions visualized
1. Left-Left (LL): Single Right Rotation
    z/c (BF=+2)				   y/b
   /   \						 /   \
  y/b   T3	   →			 x/a   z/c
  /  \						 / \   / \
x/a  T2					   T0 T1 T2 T3
/ \
T0 T1
Condition: y has BF ≥ 0 (straight line). In-order: $a = x, b = y, c = z$ .

2. Right-Right (RR): Single Left Rotation
 z/a (BF=-2)					   y/b
/   \							/   \
T0   y/b		 →			 z/a   x/c
   /  \					  / \   / \
  T1  x/c				   T0 T1 T2 T3
  	/ \
     T2 T3
Condition: y has BF ≤ 0 (straight line). In-order: $a = z, b = y, c = x$ .

3. Left-Right (LR): Double Rotation
  z/c (BF=+2)	  z/c					x/b
  /   \			/   \				 /   \
 y/a  T3	→	x/b  T3	  →	   y/a   z/c
 / \			 / \				  / \   / \
T0 x/b		 y/a T2				T0 T1 T2 T3
  / \		 / \
  T1 T2	   T0 T1
Condition: y has BF < 0 (zigzag). In-order: $a = y, b = x, c = z$ .

4. Right-Left (RL): Double Rotation
 z/a (BF=-2)		z/a					  x/b
/   \			  /   \				   /   \
T0   y/c	 →	 T0   x/b	   →	  z/a   y/c
   / \				/ \			  / \   / \
  x/b T3			  T1 y/c		   T0 T1 T2 T3
  / \					/ \
 T1 T2				  T2 T3
Condition: y has BF > 0 (zigzag). In-order: $a = z, b = x, c = y$ .
Cut/Link implementation:

Alternative implementation that avoids case distinction:

Number the 7 parts (x, y, z and $T_{0}, T_{1}, T_{2}, T_{3}$ ) by in-order traversal positions 1-7

Create array with indices 1-7

“Cut” the subtrees the inorder array: $T_{0} < a < T_{1} < b < T_{2} < c < T_{3}$

“Link” by making element at position 4 (node $b$ ) the new root

Make elements at positions 2 and 6 (nodes $a$ and $c$ ) the left and right children

Attach subtrees from positions 1, 3, 5, 7 as children of positions 2, 4, 6

Advantage: “Cleaner” algorithm with no case distinction. “Disadvantage: May require more code”.
Same $O (1)$ time complexity.

Height updates after rebalancing:
Update heights by recomputing from bottom-up (post-order)

Implementation

A working implementation. Not necessarily a good one…
Here’s a different one: https://github.com/ByteQuest0/Implemention_codes/blob/main/Trees/AVL.py

def _is_balanced(node: TreeNode | None, recursive: bool = True) -> bool:
  if node is None:
  	return True
  	if abs(_balance_factor(node)) > 1:
  	return False
  	if not recursive:
  	return True
  	return _is_balanced(node.left) and _is_balanced(node.right)

  	def _balance_factor(node: TreeNode) -> int:
  	left_height, right_height = _children_heights(node)
  	return left_height - right_height

  	def _children_heights(node: TreeNode) -> tuple[int, int]:
  	left_height = node.left.height if node.left else -1
  	right_height = node.right.height if node.right else -1
  	return left_height, right_height

  	def _recompute_ancestry_heights(node: TreeNode) -> None:
  	_recompute_height(node)
  	if node.parent is None:
  	return
  	_recompute_ancestry_heights(node.parent)

  	def _recompute_height(node: TreeNode) -> None:
  	left_height, right_height = _children_heights(node)
  	node.height = 1 + max(left_height, right_height)

  	def _find_first_unbalanced(node: TreeNode | None) -> TreeNode | None:
  	if node is None:
  	return
  	if not _is_balanced(node, recursive=False):
  	return node
  	return _find_first_unbalanced(node.parent)

  	class AVLTree(BinarySearchTree):

  	def height(self) -> int:
  	return self.root.height if self.root else -1

  	def insert(self, key: int, value) -> TreeNode:
  	new_node = super().insert(key, value)

  	_recompute_ancestry_heights(new_node)

  	unbalanced_node = _find_first_unbalanced(new_node)
  	if unbalanced_node is None:
  		return new_node

  	b = self._rebalance(unbalanced_node)
  	if b.parent:
  		_recompute_ancestry_heights(b.parent)
  	return new_node

  	def remove(self, key: int):
  	dying_node = super().find(key)
  	maybe_unbalanced = super()._remove_node(dying_node)

  	current = maybe_unbalanced
  	while current is not None:
  		_recompute_height(current)
  		if not _is_balanced(current, recursive=False):
  			current = self._rebalance(current)
  		current = current.parent

  	def is_valid(self) -> bool:
  	return super().is_valid() and _is_balanced(self.root)

  	def _rebalance(self, node: TreeNode) -> TreeNode:
  	z = node
  	y = z.left if _balance_factor(z) > 0 else z.right
  	assert y is not None

  	ybf = _balance_factor(y)
  	if _balance_factor(z) > 0:  # left heavy
  		x = y.left if ybf > 0 else y.right  # LL/LR
  	else:
  		x = y.right if ybf <= 0 else y.left  # RR/RL
  	assert x is not None

  	a, b, c = sorted((x, y, z), key=lambda node: node.key)

  	t0 = t1 = t2 = t3 = None
  	for n in (x, y, z):
  		for t in (n.left, n.right):
  			if t is None or t in (a, b, c):
  				continue
  			k = t.key
  			if k < a.key:
  				t0 = t
  			elif k < b.key:
  				t1 = t
  			elif k < c.key:
  				t2 = t
  			else:
  				t3 = t

  	self._replace_node(z, b)  # connects b to z's parent
  	b.left, b.right = a, c
  	a.left, a.right = t0, t1
  	c.left, c.right = t2, t3

  	for n in (a, c, b):
  		_recompute_height(n)
  	return b
  	```

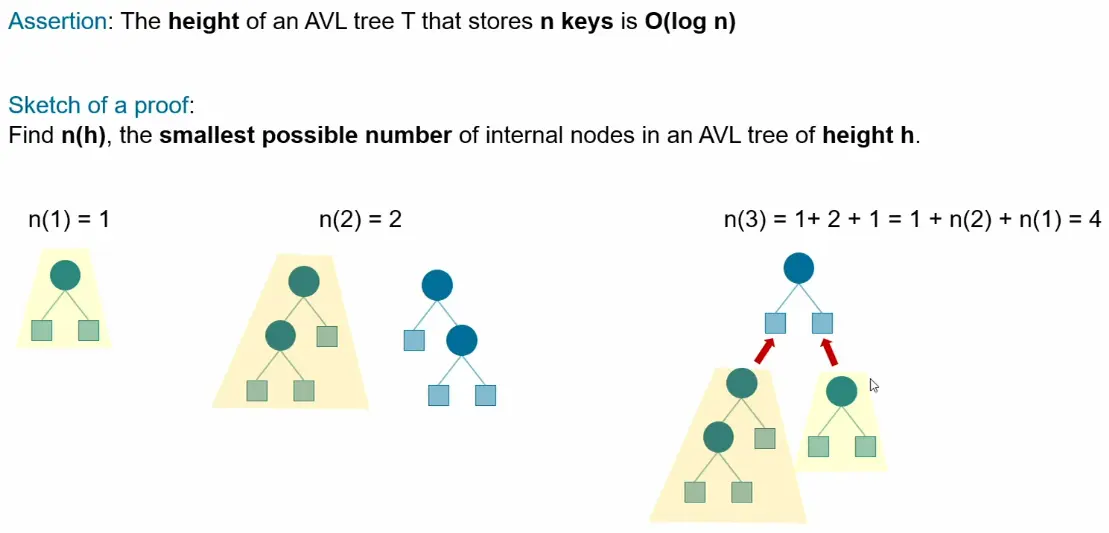

Logarithmic height bound

An AVL tree of height $h$ has at least exponentially many nodes, which implies logarithmic height for $n$ nodes.

The recurrence

Let $n (h)$ = minimum nodes in an AVL tree of height $h$ .

A minimal tree of height $h$ has:

Root node

Minimal subtree of height $h - 1$ (taller child)

Minimal subtree of height $h - 2$ (shorter child, forced by balance constraint)

$n (h) = 1 + n (h - 1) + n (h - 2)$
with $n (1) = 1, n (2) = 2$ .

This is the fibonacci recurrence shifted by 1, giving: $n (3) = 4, n (4) = 7, n (5) = 12, n (6) = 20, \dots$ compared to Fibonacci $F_{n} : 1, 1, 2, 3, 5, 8, 13, 21, \dots$ . Specifically, $n (h) = F_{h + 2} - 1$ .

Exponential lower bound

From the recurrence, $n (h) = n (h - 1) + n (h - 2) > 2 \cdot n (h - 2)$ for $h \geq 3$ .

Applying this repeatedly:
$n (h) > 2 \cdot n (h - 2) > 4 \cdot n (h - 4) > 8 \cdot n (h - 6) > 2^{i} \cdot n (h - 2 i)$
Choosing $i = ⌊ h /2 ⌋ - 1$ gives $n (h) > 2^{h /2 - 1}$ .

Height bound

For a tree with $n$ nodes and height $h$ : $n \geq n (h) > 2^{h /2 - 1}$

Taking logarithms: $lo g_{2} n > \frac{h}{2} - 1$

Therefore: $h < 2 lo g_{2} n + 2$

The constant factor is tight: AVL height is at most $\approx 1.44 lo g_{2} n$ , compared to perfectly balanced trees at $lo g_{2} n$ . In practice, a tree with $2^{30} \approx 1$ billion nodes has height $\leq 45$ .
